FOX 15x
U/C & R/C
Item numbers
12600 - 22600
This is not complete and under construction.

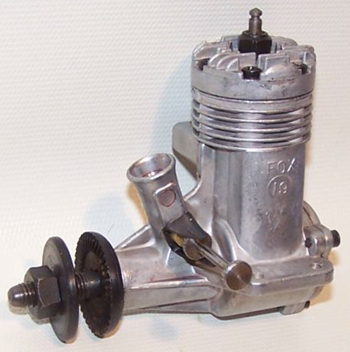

  FOX 19U/C
Also made in a .25

Anybody have
3 view or exploded view drawings of these engines?

Specifications
displacement
.19 cu in
 .25 cu in
power
3/8
3/8
rpm
12,000
 10,000
bore stroke
.650" x .600"
 .738"x.600"
weight
4 3/4 oz
 4 1/2 ox
porting
cross loop
bearing
bronze bushing
piston/cylinder
iron/steel lapped
prop size
9x4
9x5
crankshaft thread
1/4x28

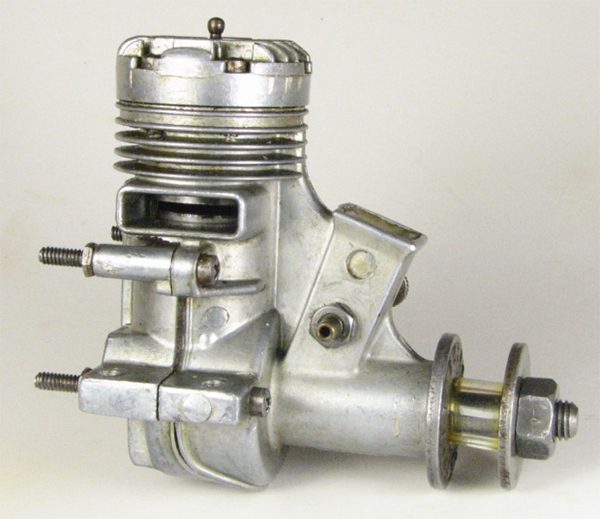

The one piece case replaced the split case design (right) at no charge by FOX in the 1950s. The split case design posed too many problems.

Manuals
Note: These are archive copies of the originals

19 25 29 35 59 manual and parts list from 1950s

Replacement Parts
This is not complete and under construction. If no part number link, we may not have the part.


spare parts

part no.
crankcase r/c
crankcase stunt
rear cover
piston/cyl
connecting rod
wrist pin
crankshaft
crankshaft reverse
cylinder head

Screw set
Gasket set


prop driver
prop washer
prop nut

prop screw
set of gaskets
screw set
