FOX 40
Stunt
& R/C
This is not complete and under construction. Last page update 2-9-2019

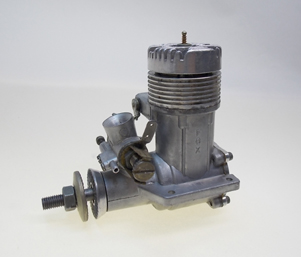

  FOX 40 Stunt & R/C

Item numbers 14000 & 24000


Anybody have any data like original specs
3 view or exploded view drawings
of this engine?

A = mm
B = mm
C = mm
D = mm
E = mm
Specifications
displacement .40 cu in
power
rpm
bore stroke
weight
porting
ball bearing
piston/cylinder
cylinder
crankshaft thread

Accessory Items
glow plug
prop

Original Owners Manual and parts list
Note: Prices and contact information not correct

Replacement Parts
This is not complete and under construction.

spare parts

new
part no.

old
part no.

crankcase r/c
crankcase stunt
10f-3951
s4001
rear cover
21f-3901
s4011
piston/cyl
33f-3901
s4004
connecting rod
16f-3901
s4007
wrist pin
15f-3901
s4006
wrist pin snap rings
s4040
crankshaft
17f-3901
s4008
cylinder head
11f-3901
s4002
fin section
22f-3901
s4005
back cover gasket
29f-3921
needle/spray bar assy
87f-3901
s4010
needle
85f-3901
s4016
prop driver
20f-3901
s4009
prop washer
13
prop nut
12
screw & gasket set
s4014
set of gaskets
29f-3901
screw set
25f-3901
venturi insert - small
s4031
venturi insert - large
s4032
