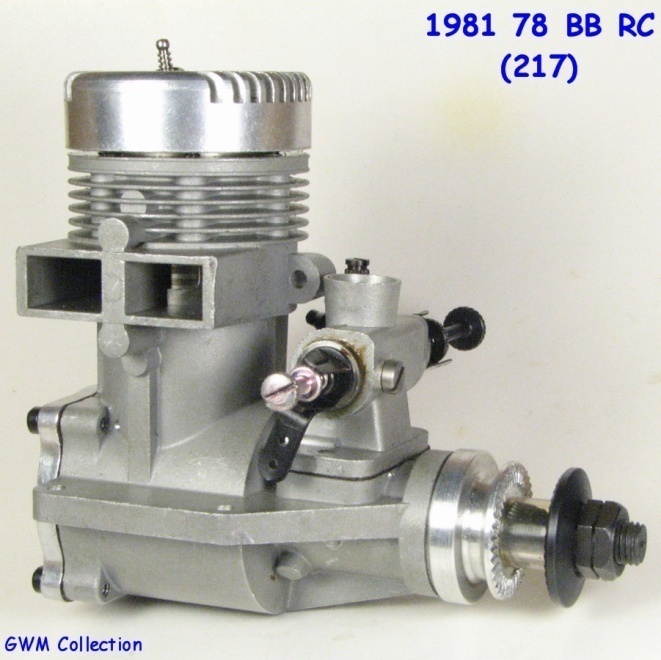

FOX 60 74 78 R/C

FOX 60 74 78 R/C   Fox 60 74 78 History Specifications displacement   power   rpm   bore stroke   weight porting ball bearing piston/cylinder cylinder crankshaft thread   Accessory Items   carburetor silencer normal   silencer tilt up           engine mount   glow plug   prop

Manuals
Note: These are archive copies of the originals

Fox 78 instructions and parts list Sept 1973

Replacement Parts
This is not complete and under construction. Check part numbers here

spare parts   78 RC Crankcase   27801 Cylinder Head   27802 Cylinder Liner   27803 Piston   27804 Connecting Rod   27807 Wrist Pin   27806 Wrist Pin Clips   26040 Piston Ring   27818 Crankshaft   27808 Prop Driver   27809 Prop Driver Wedge   26050 Back Cover 21f-7811 27811 Prop Nut   26012 Prop Washer   26013 Screw Set   Muffler Screws 78   25f-7831 Back Cover Gasket   29f-7821   Carb Complete   27850 Carb Body   27860 Barrel   27861 Idle Stop Screw & Spring   26062 Low Speed Mix   26063 High Speed Mix   26064 Idle Styop Arm   26065 Throttle Arm   26066 Ratchet Spring HS   26068 Spacer   26069 1/4-32 Nuts   26070   Exhaust Valve   27875 Snap Ring   27876 Valve Wire   27877   Rear Bearing   27842 Front Bearing   26043
