FOX Hawk .60
Stunt & R/C
This is not complete and under construction. Last page update 11-01-2021

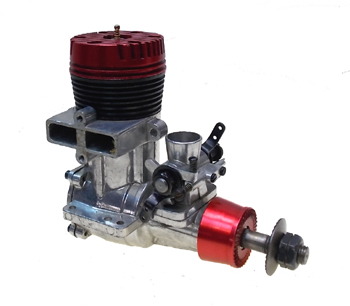

  FOX Hawk 60 Stunt & R/C


Specifications

displacement .60 cu in
rpm 13,500
bore stroke .907 .937
weight 15 oz
porting Schnuerle
ball bearing Double Ball Bearing
piston Ringed
cylinder Steel
crankshaft thread 5/16 x 24

Accessory Items
glow plug FOX 4201 K&B 7311
prop 11-7



Original Owners Manual and parts list
Note: Prices and contact information not correct





Replacement Parts
This is not complete and under construction.

spare parts

new
part no.

old
part no.
Crankcase
10F-6110
26101
Cylinder Head
rear cover
piston
Cylinder
26103
Ring
14f-6008
26008
connecting rod
26107
wrist pin
15f-6106
26106
wrist pin snap rings
26140
crankshaft
17f-6108
26108
back cover gasket
29f-6121
Front Bearing
26043
Rear Bearing
26042
prop driver
26109
Prop Drive Collet
26005
prop washer
prop nut
screw & gasket set
26114
set of gaskets
29f-6101
screw set
25f-6101
Carb Complete
Venturi Complete
Carb Body
26160
Barrel
26161
Barrel stop screw and spring
26062
Low Speed Needle
26063
High Speed Needle
Idle stop arm
26065
Throttle lever
26066
Ratchet Spring
Spacer
26069
¼-32 Nuts
26070
